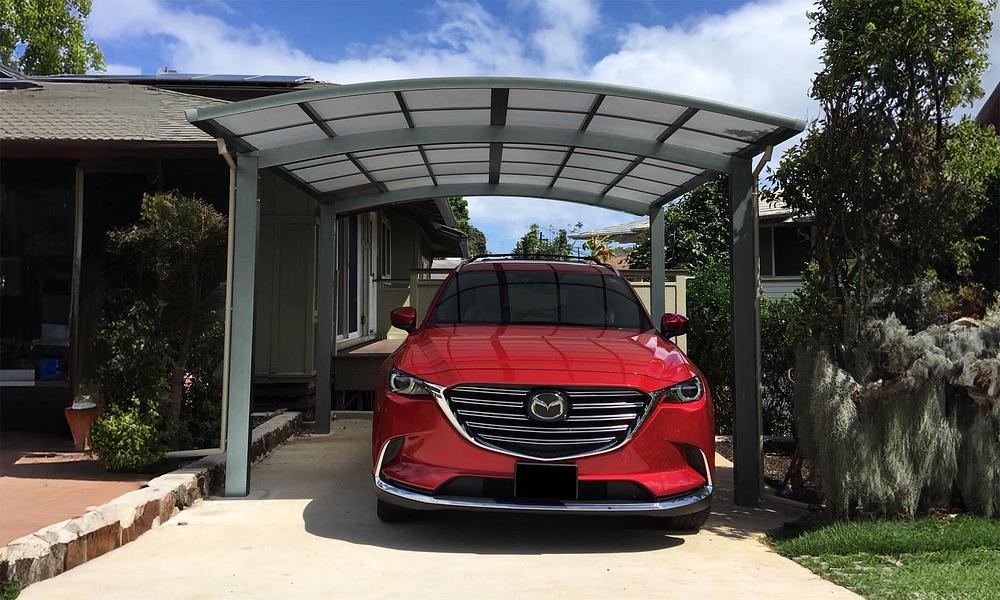

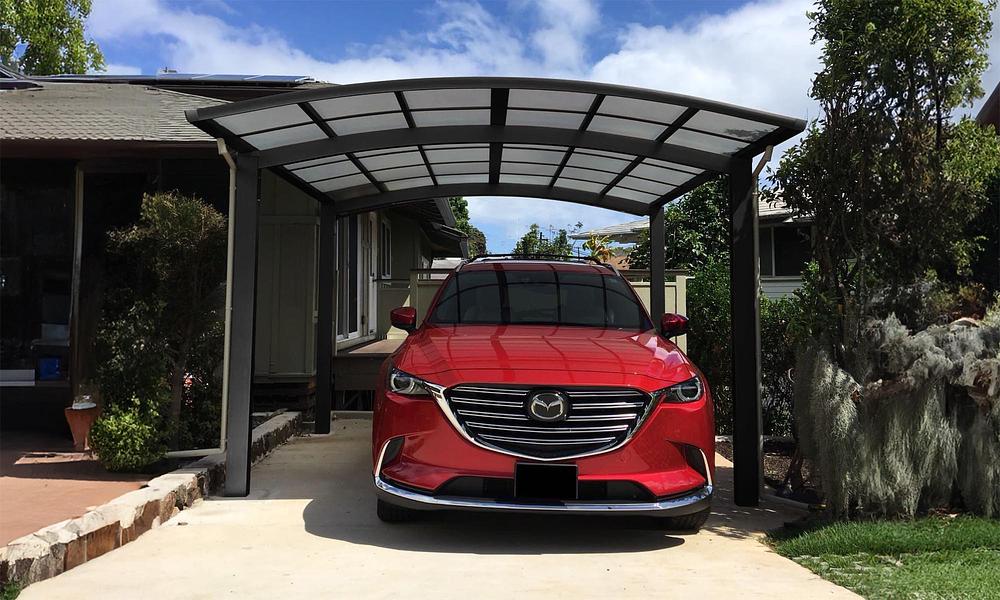

A stylish shelter perfect for your wheels, whether you're looking for a safe home for your trusty chariot or boat & trailer, this is the carport for you. If your parking area is looking a little worn or is exposed to inclement elements, look no further. This model is a Single Carport, crafted with High Strength Aluminium Alloy & boasting a 138km/h windload, you will be sure to have this for years to come!

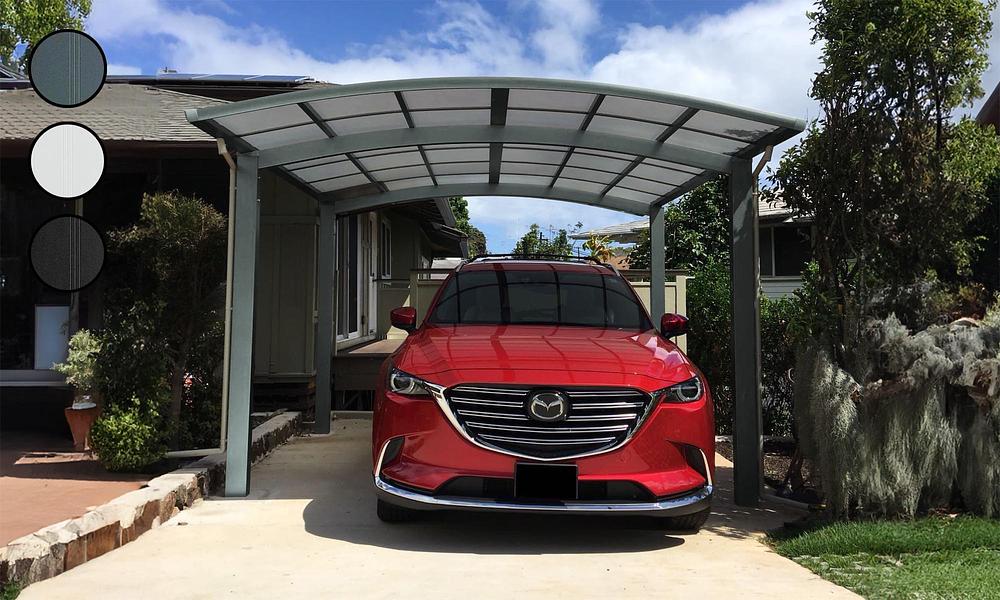

Colours: (Frame/Panel)
Black/Grey
Grey/Grey

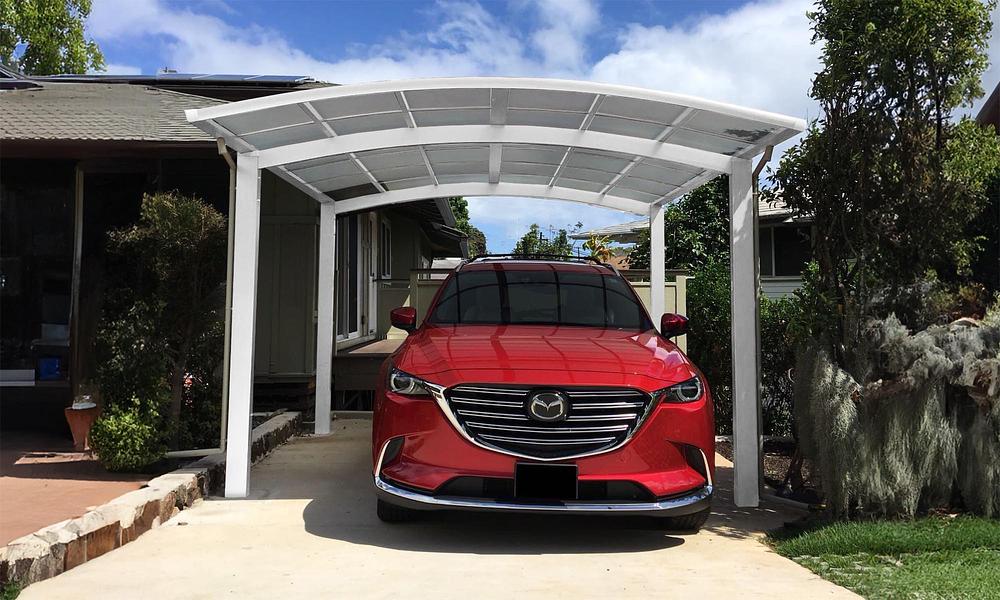

White/Grey
Specifications:
- Main Profile Material: High Strength Aluminum Alloy 6063-T5
- Main Profile Thickness: 2mm-4mm
- Windload: 138km/h
- Snowload:0.4kn/㎡(Snow Thickness 50cm)
- Aluminum Surface Finish: Powder coating,
- Electrophoresis(EP)
- Lifespan: 30 Years
- Polycarbonate sheet size: 2mm*525mm
- PC Roof Warranty: 10 Years

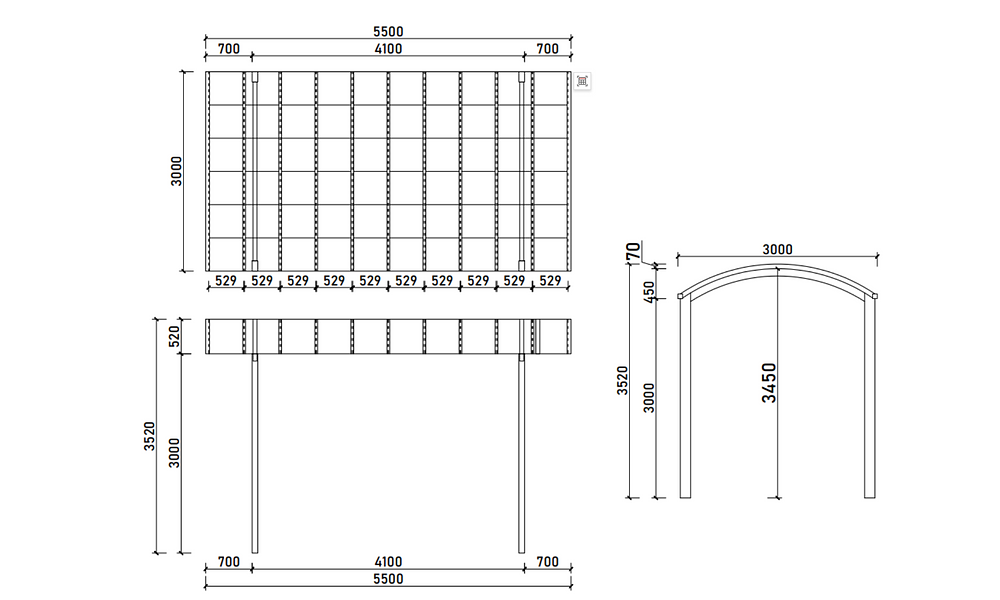

Dimensions:
Overall Dimensions: 5.5m 3m x 3.52m (L x W x H)
Distance from Leg to Leg: 4.1m
Top internal Dimension from Ground to highest point in arch: 3.45m
Distance from Leg to Leg: 4.1m
Top internal Dimension from Ground to highest point in arch: 3.45m
Please Note: If the carport is installed with posts mounted into concrete or set into the ground, the overall height will be reduced by approximately 30–50cm, depending on installation depth.
Concrete installation: Dig 500 × 500 × 630 mm pits at the fixed points, place each post in the centre, and embed it 500 mm (50 cm) deep. Fill the pits with wet concrete and allow it to fully set before completing the installation. See the installation image below for a visual guide.
