Luxe Louvres 4 x 4m Wall Mounted - 3 Variations (FS) #122

This deal is going through!

$ 4,299

plus delivery

Available on Gem logo

Estimated Dispatch From Akld

November 15th

This Item is Delivery-Only

Promotional Terms & Conditions

FREE GIFT WITH PURCHASE Receive one free Luxe Louvre Drop Down Screen with selected Luxe Louvre purchases.
This promotion is available only on specially marked Luxe Louvre deals and applies while stocks last.
The free gift is one Luxe Louvre Drop Down Screen, valued at up to $1,499 RRP, for each eligible Luxe Louvre purchased.
For example, if you purchase two eligible Luxe Louvres, you will receive two free Drop Down Screens.
For wall-mounted Luxe Louvre models, the free Drop Down Screen is limited to the front side only.
The free gift applies to the standard screen size offered with the Luxe Louvre purchased.
If you choose to upgrade to a larger screen size, the applicable size upgrade price difference will apply.
An additional $100 per screen will apply if the PVC screen option is selected.
We will contact you after purchase to confirm your preferred screen colour.
Separate Dispatch Dates Luxe Louvre pergolas included in the September promotion have an estimated dispatch date of 30 September 2026.
All Luxe Louvre Drop Down Screens included as a free gift have an estimated dispatch date of 15 November 2026.
Your pergola and free screen will therefore be dispatched separately.
These dates are estimates and may change due to shipping, port, customs or other delays outside our control.
We will keep you updated as each part of your order becomes ready for dispatch.
The free gift is as stated and cannot be exchanged for cash, credit or another product.
If the eligible Luxe Louvre order is cancelled for any reason, you will no longer be entitled to receive the free screen.
All Luxe Louvre orders are irrevocable except in the circumstances outlined in our full Terms and Conditions.
We reserve the right to substitute the free screen with an item of equal or greater quality and value if the advertised model becomes unavailable for reasons outside our control.
Previous orders are not eligible for this promotion, and previous orders cannot be cancelled and reordered to take advantage of this offer.

Warranty and Guarantee

  • All goods offered by us carry a 1-year warranty.
  • If goods are faulty and not repairable we will either exchange it for you or give you a full refund, whatever you desire.
  • We are a New Zealand company so you are protected by a series of guarantees set out in the Consumer Guarantees Act.
  • Delivery dates displayed above are estimates only. You will be able to track your purchase at all times.

Minimum Threshold Promise

We know it’s disappointing when a deal does not make it to a full container load so if there’s any way we can combine several orders into one container to make the deal happen, rest assured, we will do it!

Upgrade Your Luxe Setup For Less. Get a FREE 4m Premium Luxe Louvre Drop Down Screen, valued at  $1,499, with specially marked Luxe Louvre deals. Please note: Your free drop-down screen will be delivered separately, with an estimated dispatch date of November. See T&Cs for details.


You already know we’re basically the pergola pimps of the Southern Hemisphere. We've been slinging shade and serving style for years, but Luxe Louvres? They're next level.

We’re talking chunky aluminium frames, smoother lines, customisable colours and that one long, seamless louvre down the centre that screams high-end design. Custom-built looks, without the custom-built cost. That’s the Luxe difference.

Bigger. Bolder. Better.


Thousands of happy customers have already upgraded their outdoor living with our core pergola range which is still one of the best-value options out there - ideal for patios & first-time buyers and those wanting simple value upgrades. But if you But if you're after that full architectural statement, Luxe Louvres is the next-level choice.

4m Louvre Features:

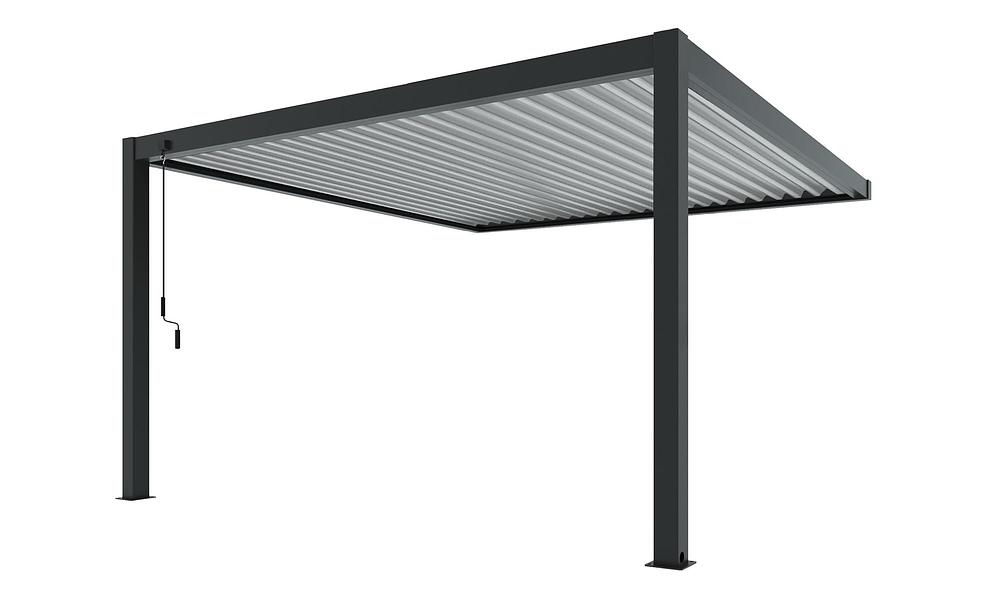

Our 4m luxe louvres feature a double layer louvre system for added structural support due to the longer span. While they look just like the 3m version from above, you’ll notice a flat louvre appearance underneath. It also has the winder on the outside of the frame.

The Wall Mounted Luxe Louvre is designed a little differently from the freestanding version:

While the overall structure remains sleek and straight, the louvres are installed at a slight angle to ensure proper water runoff when open. This creates a down gradient across the length of the louvres (as shown in the side view image), which is only noticeable when they’re open.

This design also allows our accessories to be installed on any side. We've included a built-in connector on both sides of the structure to accommodate an extra post (essential for wall-side accessories). Each gap comes with a sleek cap, so if you're not using it, the finish remains clean and seamless. Thus, giving you maximum flexibility.

*Our Images are for illustrative purposes only. For precise measurements, please refer to the specifications and dimension drawings below.


Free screen note: Free drop-down screens will be supplied separately, with an estimated dispatch date of November.

Please note: This deal is only for the 34x 4m Wall Mounted Luxe Pergola and is offered in three colour combinations. To view other sizes and colour options, please refer to the relevant deal listings. Estimated delivery dates will vary depending on the size and colour selected, as products are arriving in separate shipments.


Customisable Colours:

  • Standard black, grey, or white? Sure. But we’ve gone next-level with mix-and-match options:

    • *All colours are Matte*
    • Black frame with black louvres
    • Black frame with grey louvres - this deal
    • Black frame with white louvres
    • Grey frame with black louvres - this deal
    • Grey frame with grey louvres
    • Grey frame with white louvres
    • White frame with black louvres - this deal
    • White frame with grey louvres
    • White frame with white louvres

Finally, a pergola as stylish as your home.



Specifications:

Size Name: 4x 4m Wall Mounted
Exact outer frame Dimensions: 389.8cm x 389.8cm (L x W)
Outer Base plate to outer base plate width: 3958mm x 3958mm  (395.8cm x 395.8cm)
Height of Column: 2341mm (234.1cm)
Total height including louvres open (+ 12cm approx ): 2461mm (246.1cm)
Internal height (floor to beam): 218.6cm
Internal width post to post: 3698 x 3698mm (369.8cm x 369.8cm)
Louvres Open to: 100 degrees
Material: Aluminium
Beam Size: 155 x 82 x 1.5mm
Column Dimensions: 120 x 120 x 1.3mm
Double layer-louvre dimension: 145 x 30 x 1.1mm
Base Plate: 180 x 180 x 8mm
Screws & Fittings: Aluminium and Galvanised Steel Screws with Stainless Steel 201
Louvres open left to right.
The louvres run the 4m length
2 Legs
Delivery Only
3 Year Warranty

Whether you’re creating a dedicated outdoor dining zone, a poolside chill spot, or the ultimate entertainer’s space, Luxe Louvres are made to turn heads and handle the elements. Our luxe louvres sets a new standard in premium outdoor living whilst staying true to our mission of providing it to you for a fraction of the typical cost.

Installation and Safety recommendations:
Installation: We do recommend that you have your pergola professionally installed, simply because it is a large beast.
Wind: Keep louvres open when not in use to allow wind to pass through, ensuring stability.
Rain: Waterproof during regular showers. Minor dripping may occur during torrential rain?
Coastal Care: Hose down periodically in coastal areas to protect against sea spray

Professional Installers
MO Engineering & Installations - Matt is a contract engineer and professional louvre installer in the
Auckland/Waikato Region. See his Facebook page here for more info.

Kitset Assembly Services - They’re really friendly, know what they’re doing and have branches
around NZ. Check out their website: www.kas.co.nz

Jk Glass & Aluminium - Aluminium specialists for commercial or residential work. Check out their website: https://jkglassandaluminium.com/

And before you ask, no, we don’t get any kind of money for saying this!
*Note we recommend only booking your installer once you have received all parts of your pergola*

Additional Building Information:
In some cases, a building or resource consent may be needed. Building work related to porches and verandas up to 20 square meters generally does not require a building consent. ​However, it's important to note that local councils may have specific requirements or restrictions. We recommend checking with your local council authorities for further information and guidance before installation if needed. Especially for pergolas over 20 square metres or if you are considering building close to load-bearing walls.

Warranty Exclusions:
This structure is a non-permanent structure and warranty does not cover fading or damage incurred due to extreme weather exposure (including heavy rain, winds, exposure to high heat from bbqs and heaters). It also does not cover damage to the pergola caused by negligence, accident or misuse. Please follow the instruction manual for installation as damage caused by not following the instructions will void your warranty.

Warranty covers domestic use only and does not apply to commercial use. However, we will do our best to help with any issues or replacements parts.
