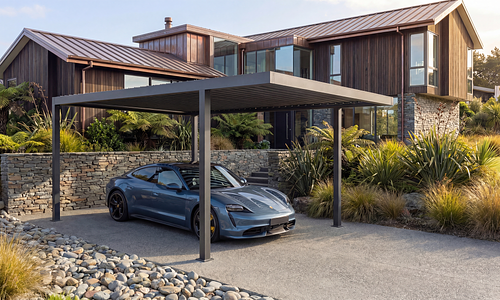

Meet the newest addition to the Elements family a premium steel carport engineered from the same high-strength, ZAM-coated galvanised steel as our upgraded Elements Pergola range. With clean lines, a minimalist frame, and fully opening adjustable louvres, it’s a modern, multi-purpose shelter built for real Kiwi homes.
Use it as a carport, a covered outdoor workspace, or even a sleek louvred pergola. The flexible design means you get shade, shelter, and ventilation whenever you need it. The louvres open and close to protect from sun or rain, making it just as useful as a lifestyle pergola as it is for parking.
Designed in a taller 2.5m height, it provides generous clearance for cars, SUVs, utes, vans, and anything else you want to keep protected. Built tough, looks sharp (and an epic price point).

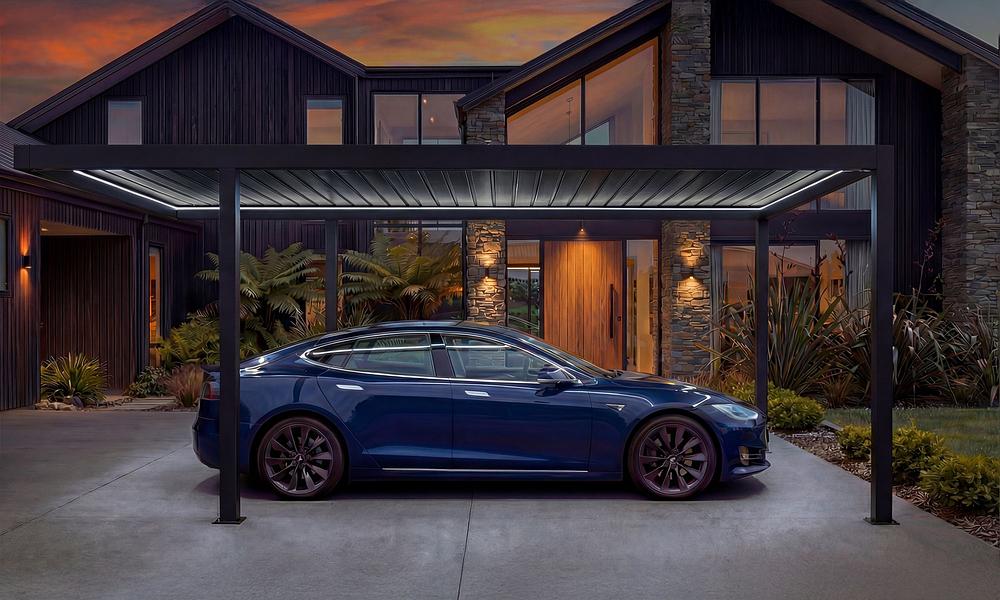

Now Available with Integrated Solar Sensor Lights!
Seamlessly built into the frame, these lights activate automatically on movement, delivering a crisp 6000K Cold White glow exactly when you need it. Powered entirely by solar, they operate wire-free with no switches, no wiring, and no ongoing power costs. Simply pull in… the lights do the rest.
Carport Specifications:
- Size Name: 3m × 5m x 2.5m Carport
- Steel Beam Size: 150 × 35 x 1mm
- Steel Post Size: 100 × 100 mm x 0.8mm
- Steel Louver Size: 180 × 34.5 x 0.6mm
- Base plate dimension: 16cm x 16cm, 3cm of each side of post.
- Common Galvanised Steel with Zinc–aluminium–magnesium alloy coating
- Component Material: Galvanised Steel & Aluminium with 304 stainless steel screws
- Plastic decorative corner covers included
- Louvres open to: 120 degrees
- Legs: 4
- Galvanised Steel
- With coating of the below:
- Zinc (Zn): ~90–95%
- Aluminum (Al): ~5–11%
- Magnesium (Mg): ~1–3%
- Superior long-term corrosion protection.
- Steel is significantly stronger and heavier than aluminium models so while it may have some slimmer profiles it it has a stronger wind resistance (so this baby ain't blowing away in a hurry)
- Great lifespan due to strong coating on cuts, screw holes and brackets
- Many carports, solar structures, and industrial canopies use ZAM steel instead of aluminium due to it's strength
- Also... it just looks bloody epic
- Voltage: 22.2 V
- Capacity: 4.4 Ah
- Energy: 97.68 Wh
- Cell Type: 18650 Li-ion
- Cell Configuration: 2200 mAh × 12 pcs
- Maximum Output Current: 1 A
- Maximum Power Output: 24 W
- Control System
- Operating Frequency: 868 MHz
- Protocol: FRSK
- Security: Rolling-code encryption
- Protection Rating: IP67 (dust-tight and water-resistant)
- Housing Material: Aluminium alloy
- LED Strip Options
- Type: Silicone LED strip
- Output: 3 W per metre
- Colour Temperature: Cold White (6000 K)
- Designed exclusively for use with the integrated solar panel
- Compatible with the Elements Carport only
- Supply Voltage: 3.3 – 4.2 V DC
- Operating Current: < 30 mA
- Standby Current: < 300 µA
- Shutdown Current: < 5 µA
- RF Modulation Mode: FSK
- RF Transmission Power: < 10 dBm
- Environmental Conditions
- Operating Temperature: –20 °C to +60 °C
- Detection Range
- Sensing Distance: 2 – 8 m
Regular Cleaning; Rinse the frame with fresh water (hose) to wash away salt, dust, and grime. For coastal areas, far more often. If surface spots appear (from rain, pollen, limescale, or mineral deposits), gently clean with a mild detergent solution. ZAM coating is self-healing to a degree, meaning small scratches often protect themselves over time. For deeper chips, apply a small amount of galvanised touch-up paint to maintain long-term protection.
This structure is a non-permanent structure and warranty does not cover fading or damage incurred due to extreme weather exposure (including heavy rain, winds, exposure to high heat from bbqs and heaters and well unfortunately strong weather events). It also does not cover damage to the pergola caused by negligence, accident or misuse. Please follow the instruction manual for installation as damage caused by not following the instructions will void your warranty.
Warranty covers domestic use only and does not apply to commercial use. However, we will do our best to help with any issues or replacements parts.
