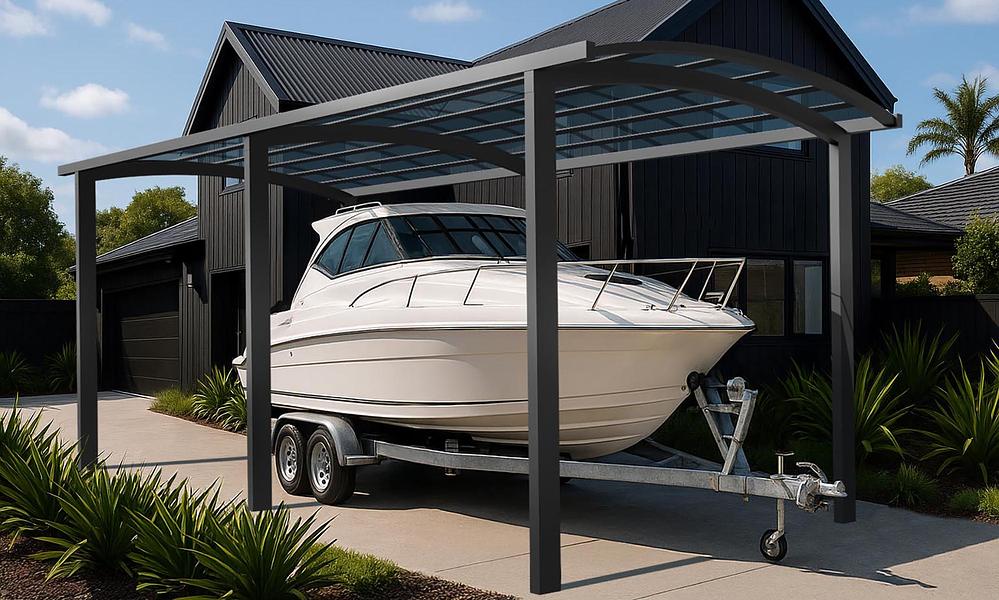

Big toys need big cover... because squeezing a caravan under a garden umbrella just doesn’t cut it. Now with our newly upgraded M-Shape Carport, your caravan, horse truck, boat, or trailer can finally get the proper shelter it deserves.
At 7.5m x 3.5m, it’s purpose-built to handle the big boys, offering serious height, generous clearance, and full-length protection. No awkward overhangs. No tight squeezes. Just sleek, weatherproof shelter from end to end.

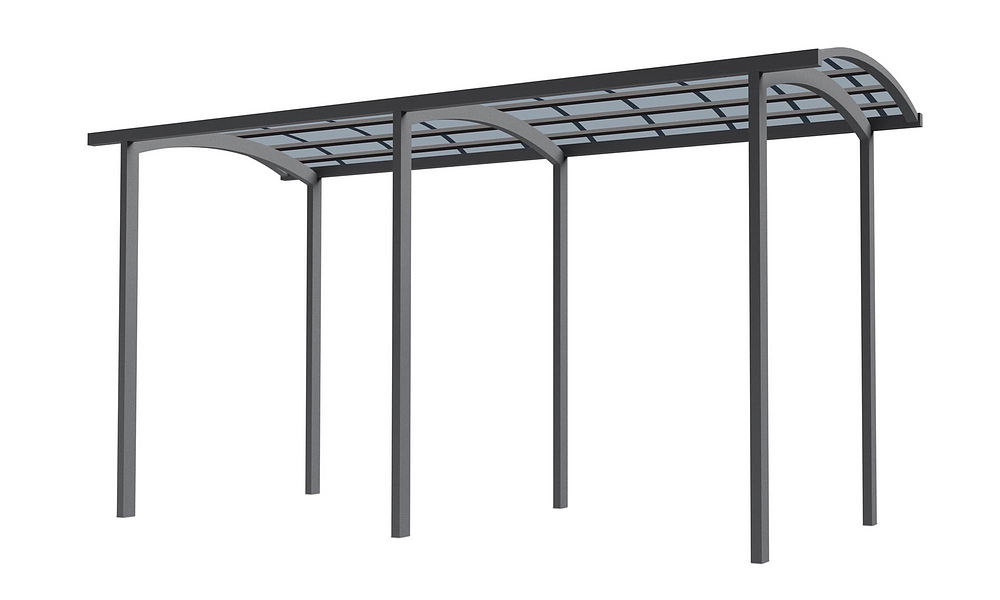

The curved roofline adds a sleek, modern finish and allows for easy water runoff, with six solid support legs (three on each side) providing reliable strength and stability. Made from powder-coated aluminium, it’s built to handle the elements, wind-ready, and stylish enough to level up any driveway or outdoor space.
Colours: (Frame/Panel)

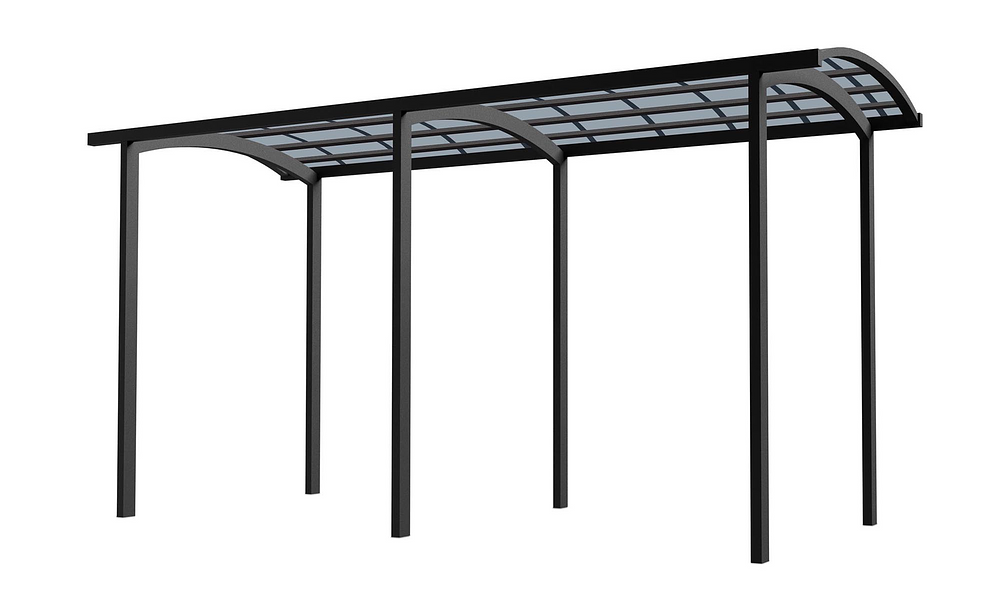

Black/Grey
Grey/Grey

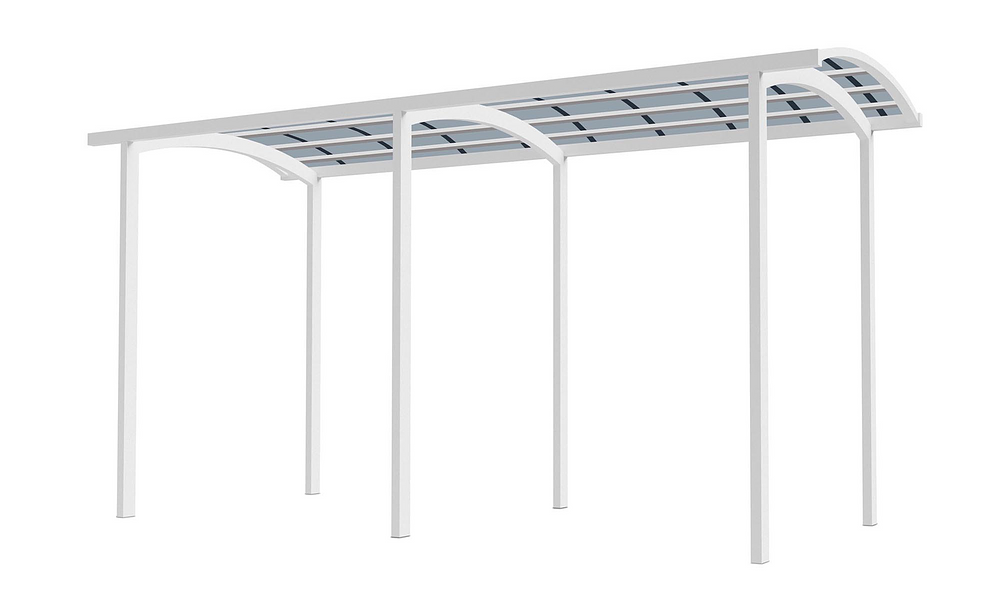

White/Grey
Dimensions:

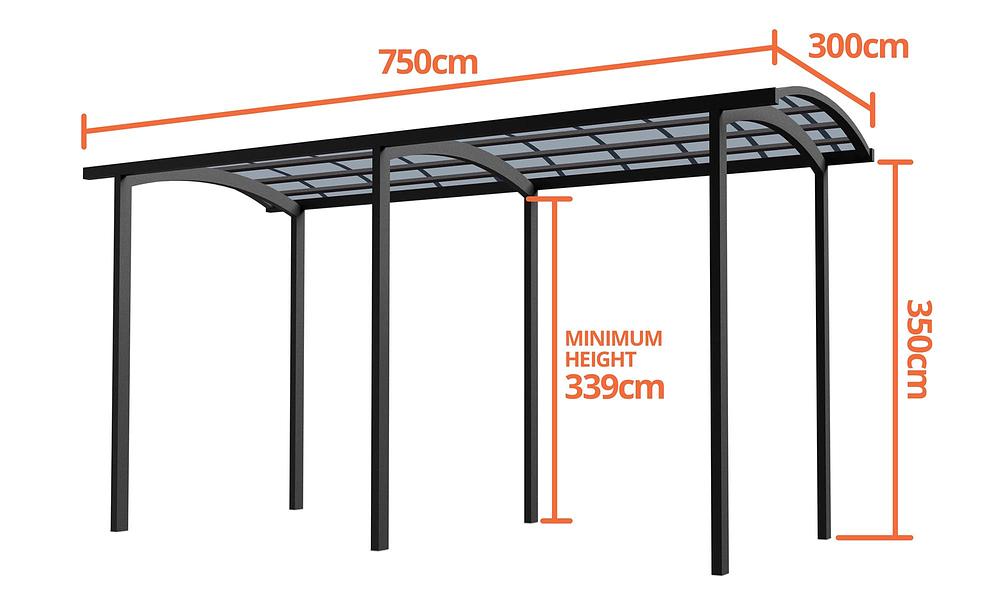

Overall Dimensions: 7.5m 3m x 3.5m (L x W x H)
Post size: 156 x 86mm
Post thickness: 2.3-3.4mm

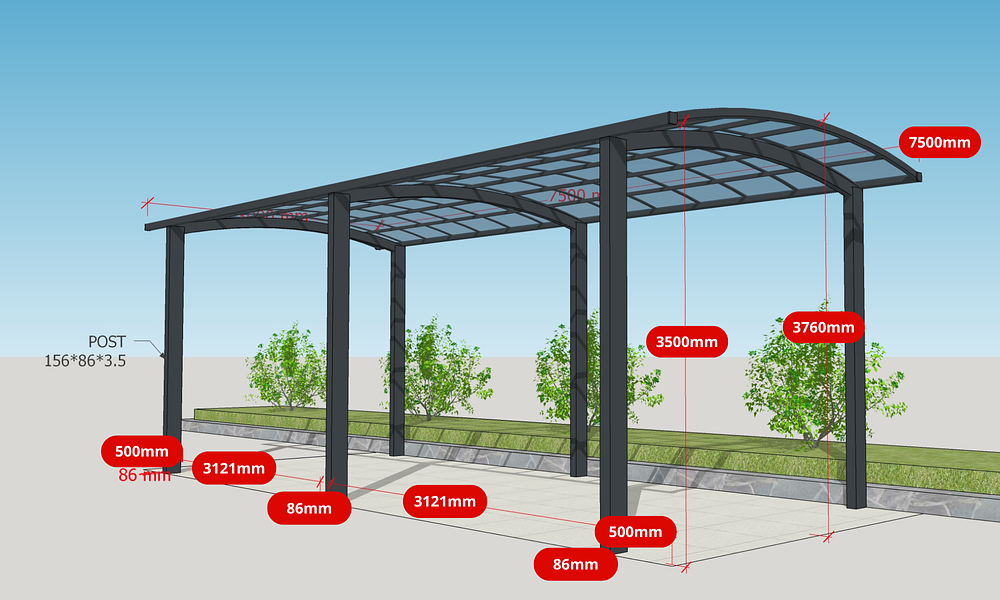

See pictures for more detailed dimensions
Specifications:
- Main Profile Material: High Strength Aluminum Alloy 6063-T5
- Main Profile Thickness: 2mm-4mm
- Snowload:0.4kn/㎡(Snow Thickness 50cm)
- Aluminum Surface Finish: Powder coating,
- Electrophoresis(EP)
- Lifespan: 30 Years
- Polycarbonate sheet size: 2mm*525mm
- PC Roof Warranty: 10 Years
The default UV coating on the surface of our board is 50um coating, which consumes 5um per year and can be used for about 10 years. This UV coating is used to protect the board. If it is used to protect the car, it is related to the light transmittance of the board. In other words, the darker the color will be have better the protection of the vehicle.
Installation Note: If the carport is installed with posts mounted into concrete or set into the ground, the overall height will be reduced by approximately 30–50cm, depending on installation depth.
Concrete installation: Dig 500 × 500 × 630 mm pits at the fixed points, place each post in the centre, and embed it 500 mm (50 cm) deep. Fill the pits with wet concrete and allow it to fully set before completing the installation. See the installation image below for a visual guide.
Wind Note: If you live in a high wind zone or an area that experiences strong gusts, we recommend securing the PC roof with additional fasteners and potentially upgrading to larger ones for extra strength and protection.
