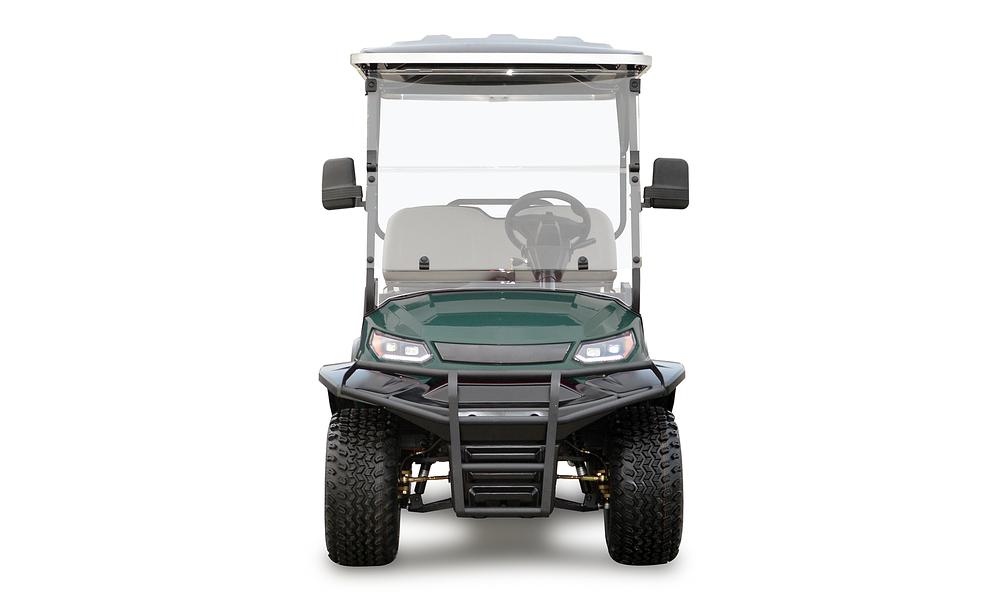

This golf cart has all of the same premium features as our other model, but comes with an upgraded lithium battery.
This model is the premium raised-suspension spec with an advanced Toyota controller. It's manufactured in one of the world's leading factories, and features industry-leading components from Japan, America and Europe. It's also backed by a 2 year mechanical and electrical warranty!
For a more in-depth understanding of all that this amazing golf cart offers check out the full list of detailed specifications and features below.
If you need more info, or if you're not quite ready to buy but want to register your interest, click the "Questions?" button (next to the Pre-Order button) and let us know!
Do you need to buy a whole fleet? Also click the "Questions" button and get in touch. But please bear in mind that since we sell by the container-load, this price IS the bulk discount rate, available to everyone purchasing individually.
As this is a big beast, it's priced for Pick Up from our Auckland depot but we can quote you for delivery to make sure you get the cheapest available rate. Another reason to use the devilishly convenient "Questions" button!

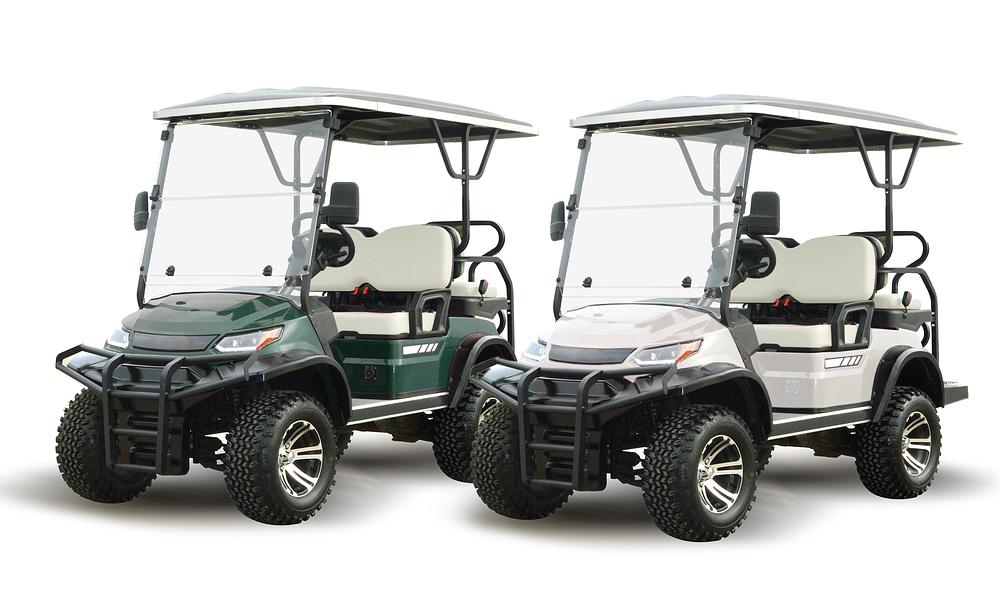

Available in two colours:

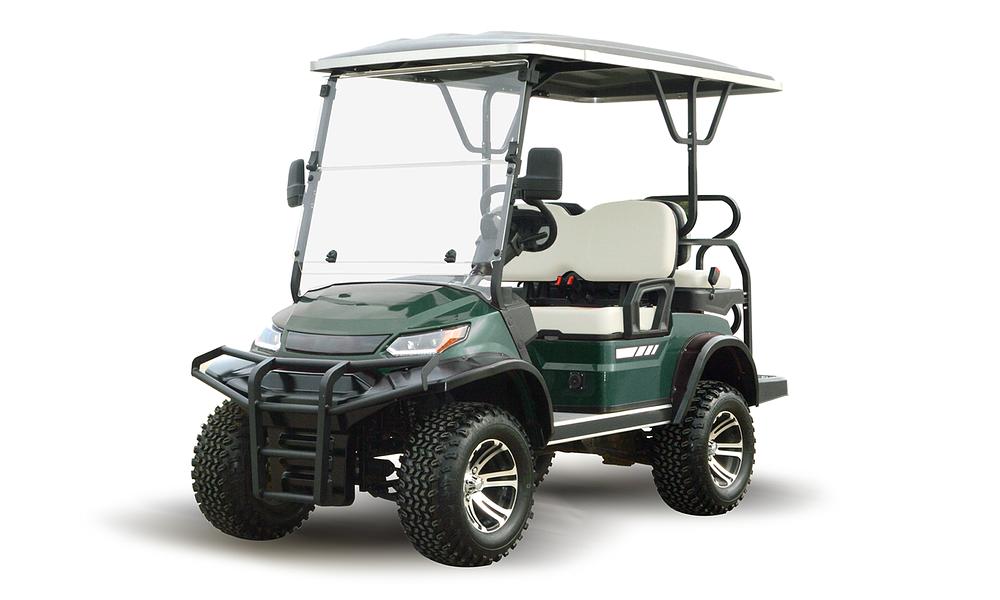

Metallic Green with Cream seats

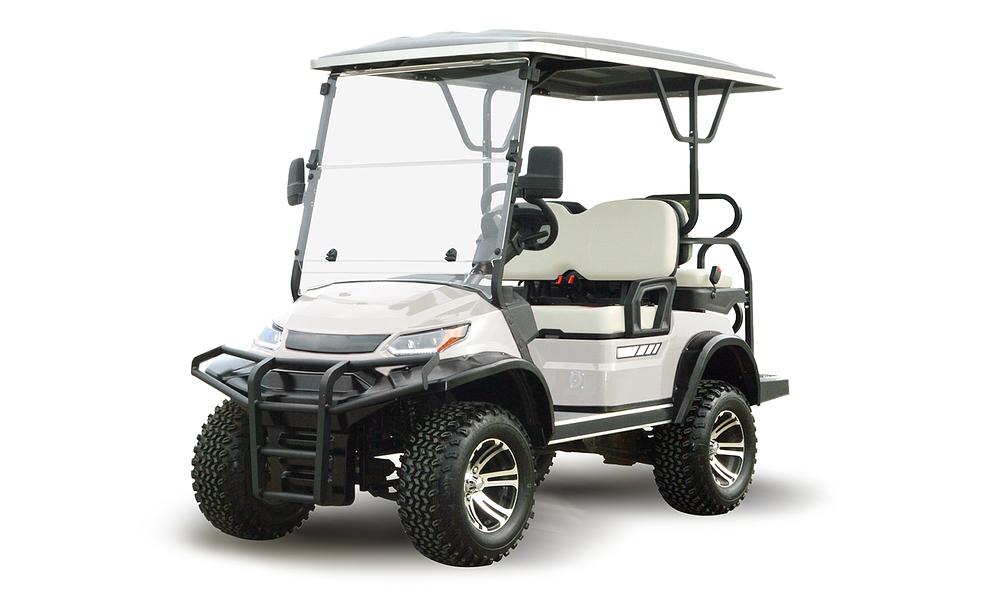

Beige with Cream seats
Specifications:
Mechanism:
Motor: 48V 4.0kw
Controller: Toyota Controller 48M 350B-350A
Battery: Lithium Battery 48V/150Ah
Charger: Intelligent onboard charger 48V/25A
DC-DC Converters: Non-isolated DC converters 48V/12V-180W
Performance:
Passenger capacity: 4 people
Gauges: Speedometer, Charge meter, Odometer
Range: 90-105kms
Max speed: Up to 25kmh depending on load
Min. Turning radius: 3.8m
Max. Climbing ability (loaded): 20%
Braking distance: =<6m
Tread: Front 1020/ Rear 1070 mm
Dimensions:
Overall dimensions (mm): 2930 x 1370 x 2060 (L x W x H)
Min. Ground clearance (mm): 185mm
Gross weight (with batteries): 485kgs
Electrical System:
Lighting system:
o Headlights
o Tail lights
o Brake lights
o Turn signals with indicator stalk
Reversing alarm: Reversing buzzer and horn
Steering and Suspension:
Steering system: Rack-and pinion system, automatic clearance compensation function
Brake System: Four-wheel hydraulic brake, disc brake with Electromagnetic brake
Accelerator: Electric accelerator
Front suspension: Double swing arm independent front suspension + coil spring + cylinder type hydraulic shock
Rear Suspension: Integral transaxle ,Helical spring with hydraulic shock absorber, gear ratio 16:1
Wheels: 10 inch alloy mag wheels with 20 inch tyres
Body and frame:
Frame: Welded high yield strength tubular steel
Body: “P.P” Alloy automatic industrial special plastic
Windshield: Hinged windshield

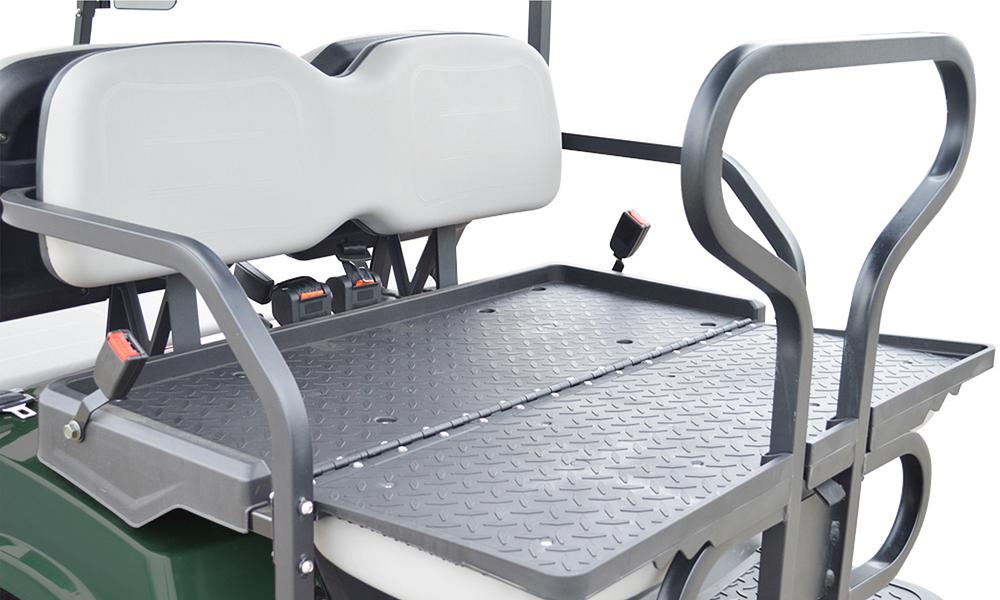

Seats: Ergonomic vinyl seats
Floor: All-aluminium floor, corrosion resistance, aging resistance

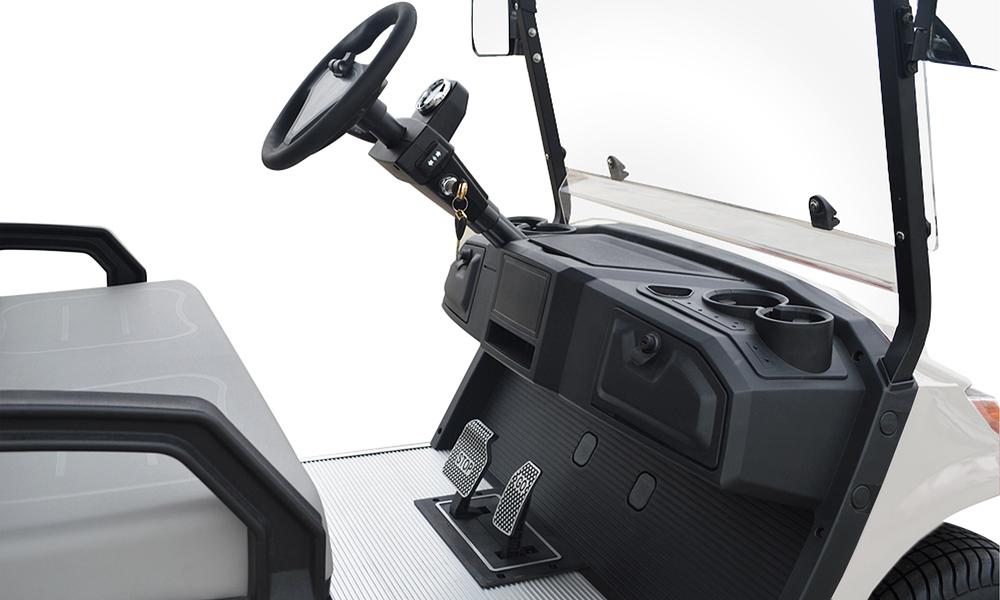

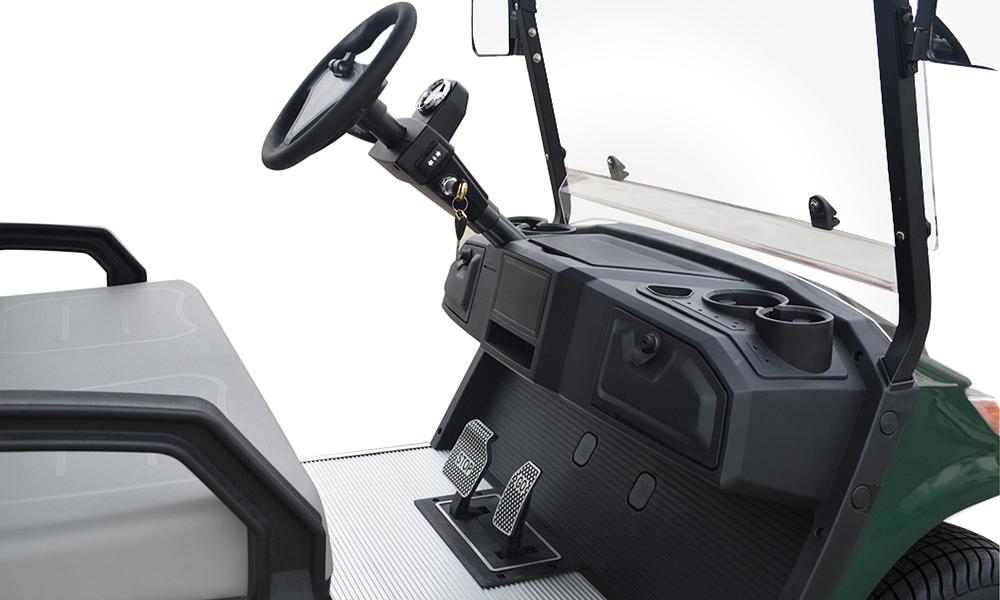

Dashboard: Plastic moulding dashboard with electricity meter, key switch, single arm combined switch, cup holder.
Advanced LCD meter with double USB power supply and fault diagnosis information display
Roof: Automotive PP injection moulding integrated ceiling with aluminium alloy edge,
Manually adjustable outside back mirror
Mirrors: 2 x wing mirrors
Lighting System: LED headlamp system(dipped headlight, high beam, turn signal, daily running light, position light), LED rear tail lamp system (brake light, position light, turn signal light)
Reversing alarm
Tyre: 12 inch aluminium wheel & ATV Tyre 23 x 10.5-12 (Dia: 580mm)
