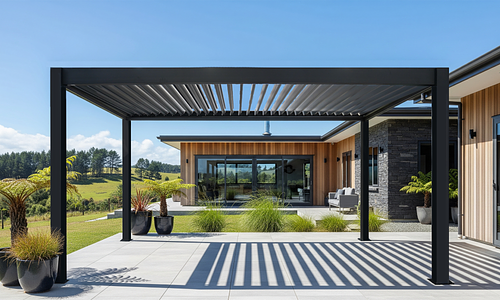

Shade, style, and strength! As you know, we’re practically pergola experts here at Container Door, and now we’re stepping things up a notch. Say hello to our New Premium Pergola range – Luxe Louvres! They are thicker, chunkier, stronger, and smarter than ever before. This isn’t just a pergola; it’s the ultimate upgrade for your Kiwi backyard. Perfect for creating a luxurious outdoor retreat, whether it’s a poolside sanctuary, a sophisticated patio, or a shaded garden haven.
Having already transformed outdoor spaces for thousands of happy customers, our luxe louvres sets a new standard in premium outdoor living whilst staying true to our mission of providing it to you for a fraction of the typical cost.
We know the weather here can be unpredictable – sunny one moment, drizzly the next, with a bit of wind thrown in for good measure. That’s why the Premium Pergola is more than just a good looker. It’s designed to handle it all while keeping you comfortable, dry, and stylishly sheltered.
Why Choose the Luxe Louvres ?
Having already transformed outdoor spaces for thousands of happy customers, our luxe louvres sets a new standard in premium outdoor living whilst staying true to our mission of providing it to you for a fraction of the typical cost.
We know the weather here can be unpredictable – sunny one moment, drizzly the next, with a bit of wind thrown in for good measure. That’s why the Premium Pergola is more than just a good looker. It’s designed to handle it all while keeping you comfortable, dry, and stylishly sheltered.
Why Choose the Luxe Louvres ?
Built Tougher, Built Smarter
With thicker aluminium and robust fittings, this model is designed to weather the elements like a champ – be it sun, showers, or those cheeky southern winds.Better Drainage, Better Design
Our improved drainage system ensures that rain doesn’t stick around to spoil the party.Tested for Your Peace of Mind - Wind Rating
- Wind Load Test: Endured forces equivalent to Beaufort Wind Force 9
- Certified to wind grade 5 of EN 13659 standards, ensuring stability during intense winds.
Customisable Colours – Make It Yours
Standard black, grey, or white? Sure. But we’ve gone next-level with mix-and-match options:- Black frame with black louvres
- Black frame with grey louvres

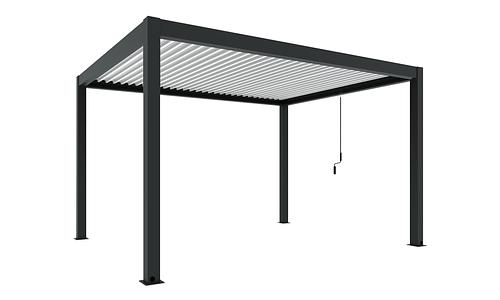

- Black frame with white louvres
- Grey frame with black louvres
- Grey frame with grey louvres
- Grey frame with white louvres
- White frame with black louvres
- White frame with grey louvres

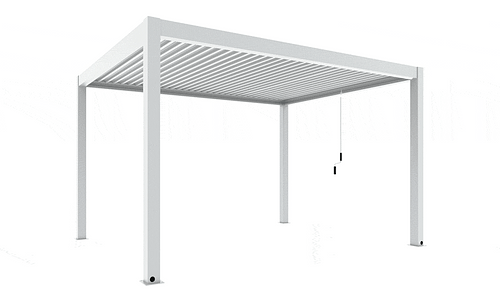

- White frame with white louvres
Finally, a pergola as stylish as your home.
Specifications
Size Name: 3 x 4m FreeStanding
Overall Frame Dimensions: 290.4 x 394.4cm
Internal frame dimensions: 266.4cm x 370.4cm
Internal frame dimensions: 266.4cm x 370.4cm
Total Height of Pergola Including Open Louvres: 233.5cm
Height of Column: 238cm
Louvres Open to: 90 degrees
Material: 1.2 – 1.6mm Aluminium
Beam Size: 150 x 40 x 1.5mm
Column Dimensions: 120 x 120 x 1.6mm
Base Plate: 18 x 18 x 8mm
Aluminium Sheet Dimensions: 125.7 x 37.8 x 1.2mm
Screws & Fittings: Aluminium and Galvanised Steel Screws with Stainless Steel 201 Fittings & Brackets
Packed in 3 Boxes – Delivery Only
Box 1: 240 x 30 x 37cm (GW: 41.8kg)
Box 2: 394 x 30 x 17cm (GW: 44.7kg)
Box 3: 280 x 30 x 28cm (GW: 49.6kg)
Box 4: 280 x 30 x 15cm (GW: 18.6kg)
Important Notes:
Wind: Keep louvres open when not in use to allow wind to pass through, ensuring stability.
Rain: Waterproof during regular showers. Minor dripping may occur during torrential rain?
Coastal Care: Hose down periodically in coastal areas to protect against sea spray
INSTALLATION & SAFETY RECOMMENDATIONS:
Firstly, we do recommend that you have your pergola professionally installed, simply because it is a large beast.
Read more about installation here:
See Pergola Manual
PROFESSIONAL INSTALLERS:
MO Engineering & Installations - Matt is a contract engineer and professional louvre installer in the
Auckland/Waikato Region. See his Facebook page here for more info.
Kitset Assembly Services - They’re really friendly, know what they’re doing and have branches
around NZ. Check out their website: www.kas.co.nz
And before you ask, no, we don’t get any kind of money for saying this!
*Note we recommend only booking your installer once you have received your pergola*
WARRANTY EXCLUSIONS:
This structure is a non-permanent structure and warranty does not cover fading or damage incurred due to extreme weather exposure (including heavy rain, winds, exposure to high heat from bbqs and heaters). It also does not cover damage to the pergola caused by negligence, accident or misuse. Please follow the instruction manual for installation as damage caused by not following the instructions will void your warranty.
Warranty covers domestic use only and does not apply to commercial use. However, we will do our best to help with any issues or replacements parts.
*In some cases, a building or resource consent may be needed. For pergolas over 20 square metres we recommend checking with your local council authorities for further information and guidance.*
