Let there be light – AND weather protection. You love our stand-alone Aluminium Louvre Pergolas – now here’s a version that you can attach to your house, garage or other structure.
The clear polycarbonate roof lets the light shine in on fine days and keeps the rain off during more inclement weather. It’s a practical way to add weather protection to your outdoor utility areas, yet glam enough to extend your living space.
The frame is easy-care, long-lasting aluminium, and the roof is made from grunty, 8mm clear polycarbonate plates that provide 99.8% protection from UV.
You can be flexible with the install height against the wall – at least 20cm below the maximum height - if you need to avoid window-frames, guttering or eaves. You will also need to reposition the columns to suit your installation situation. The wall to column depth ranges from 225cm to 285cm. So the closer the legs are to the wall the higher the install height is against the wall will be.
Best of all, these are made by the same manufacturers as our big boy pergolas, so you know they’re fantastic quality.
SPECIFICATIONS:

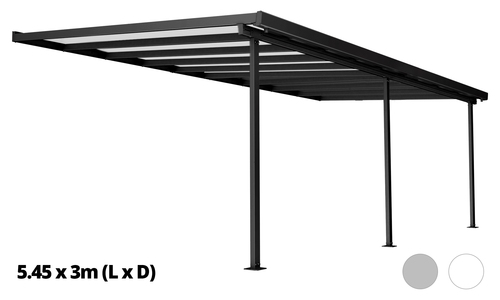

Colours: Matte Black, Matte Grey, Matte White
Roof: 8mm clear polycarbonate with 99.8% UV protection
Frame: aluminium with coloured powder-coating
Connector Parts: steel with plastic powder coating
Column Height: 210cm
Total Front Height (including front bar): 225cm
Maximum Wall Mount Height: 270cm
Total Maximum Wall Mount Height (including wall mount beam): 280.4cm
There are three lengths, three depths and three colours in this range, so you have plenty of choice!
THIS SIZE IS:

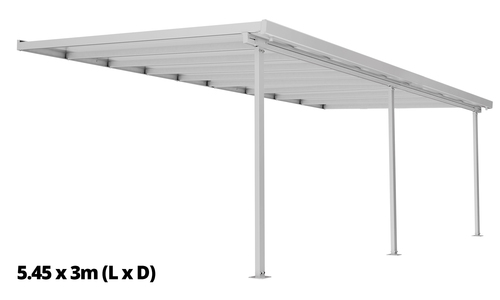

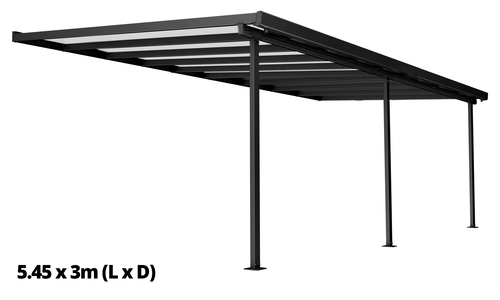

545cm long x 300cm deep
3 legs
9 roof panels
NB. The length is the edge parallel to your house or attachment wall, the depth is how far it protrudes.
PART SIZES:
Front bar: 102 x 104mm
Column: 60 x 40mm
Roof plate: 600 x 8 mm
Wall mounted beam:50 x 104 mm
Front girder (beam the legs are attached to): 62 x 81 mm
Panel Beam: 40 x 66 mm
Outside beam: 40 x 76mm
INSTALLATION AND SAFETY TIPS:
This comes with a basic tool-kit (allen keys etc), but you will need a drill.
Wall and ground bolts are provided but these MAY NOT be suitable for all installations – it will depend on the base material and your house/wall construction. We cannot give individual advice, so please obtain professional guidance and installation.
Beams run through the roof for strength and the polycarbonate plates are placed on top. The roof tilts downwards to allow rain to drain down two holes on the front edge.
There is no wind rating for our Patio Covers and they are NOT recommended for exposed areas. Please use your own judgement or get expert advice. For your safety, we do not recommend that you attempt to make alterations to these Patio Covers, and any adjustments will void your warranty coverage.
LOOKING FOR PROFESSIONAL INSTALLATION? WE HAVE A COUPLE OF RECOMMENDATIONS:
MO Engineering - Matt is a contract engineer and professional louvre installer in the Auckland/Waikato Region. See his Facebook page here for more info.
Kitset Assembly Services - They’re really friendly, know what they’re doing and have branches around NZ. Check out their website: www.kas.co.nz
And before you ask, no, we don’t get any kind of money for saying this!
WARRANTY
Warranty does not cover fading or damage incurred due to extreme weather exposure (including heavy rain, winds, exposure to high heat from bbqs and heaters). It also does not cover damage caused by negligence, accident or misuse. Please follow the instruction manual for installation as damage caused by not following the instructions will void your warranty.
Warranty covers domestic use only and does not apply to commercial use. However, we will do our best to help with any issues or replacements parts.
