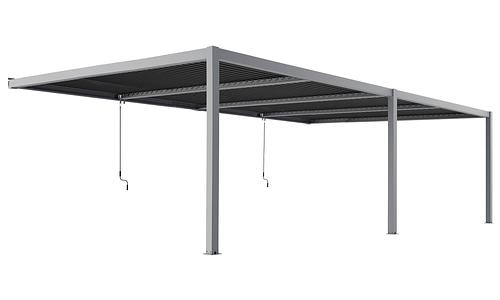

BIG BOY wall-mounted pergolas are here!
Made with all the bells and whistles you love from our big freestanding pergolas, but with 2 legs and the ability to be installed flush against the wall. These stylishly-chic covers will provide shade in the summer and shelter from the elements in winter, thanks to the adjustable hand-crankable louvres.
The tough aluminium construction, and galvanised fasteners make this is a rust-proof structure that's going to bring you a lot more use of your pool area, garden, balcony or patio making your outdoors a whole lot more useable all year round - as you know at Container Door...the party....must always go on!
The louvres shut tightly when closed and are waterproof during showers - great for BBQs and alfresco dinner parties you're so fond of. The height of the wall installation is slightly higher than the legs to ensure the water runs down the sides into internal gutters, then down through the legs, rather than pouring out over the sides. So you won't have to fear any unexpected deluges from on high, either!

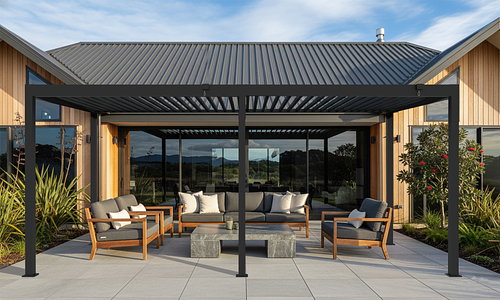

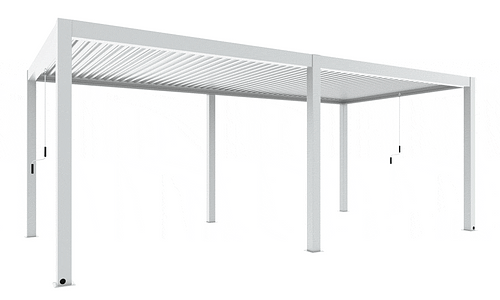

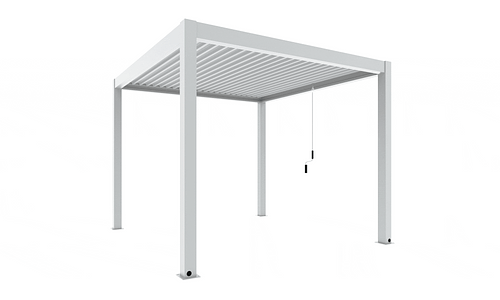

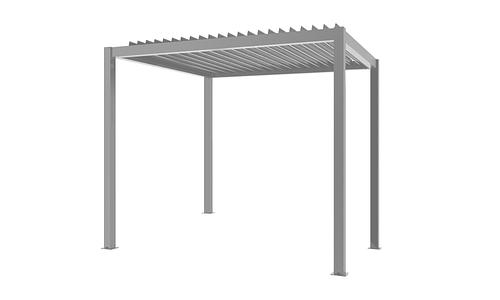

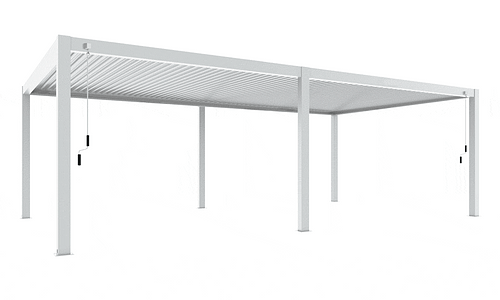

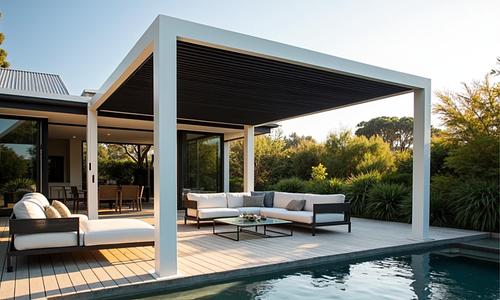

For more pictures of our pergola range check out our customer photos in our other (freestanding) Aluminium Pergola deals.
Colours Available (see other deals):
Matte Black
Matte Grey
Matte White

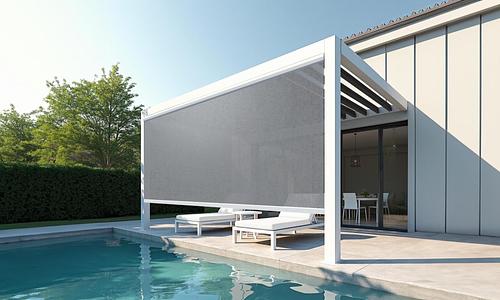

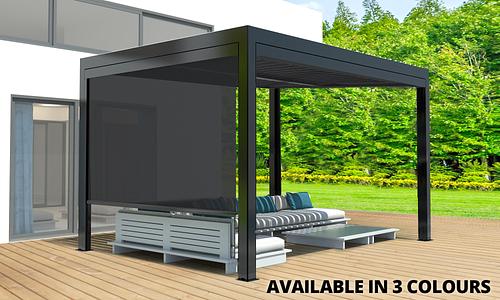

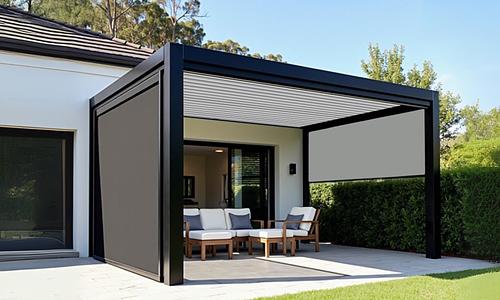

Drop-down Screen Info: these wall mounted pergolas are only compatible with screens/sides (at the end away from wall). For this size you will need 1 or 2 x 294 x 294 drop-down screens or the 90cm louvred screens.
Specifications:
- Aluminium Frame: 5.7 x3.9m
- Louvres open to 90 degrees
- 3 degree angle against from wall
- Height of front column: 230cm + 8cm Louvres when open
- Height of wall installation: 245
- Column size: 100 x 100 x 1.6 mm
- Base plate size: 160 x 160mm
- Beam size 120 x 45 x 2.0 mm
- Aluminium sheet: 145 x 23 x 1.4mm
- 1.4 - 2mm Aluminium
- Galvanised stainless steel 201 fittings & brackets
- 2 hand crankable winders
Packed in 8 boxes:
• Box 1 : 262cm x 37cm x16cm, GW 31.6kg
• Box 2 : 387cm x 29.5cm x 29cm, GW 61kg
• Box 3: 287cm x 24cm x 18cm, GW 32kg
• Box 4: 387cm x 17cm x 15.5cm, GW 21kg
• Box 5: 146cm x 37cm x 25cm, GW 30.5kg
• Box 6: 146cm x 37cm x 25cm, GW 30.5kg
•Box7: 146cm x 37cm x 25cm, GW 30.5kg
• Box 8: 146cm x 37cm x 25cm, GW 30.5kg
AN IMPORTANT NOTE ABOUT THE WIND:
We recommend that you leave the louvres in a slightly OPEN position when the pergola is not in use. The closed louvres can act like an umbrella-catching gusts, so it's safer to let the wind blow through rather than exert force on the structure.
INSTALLATION AND SAFETY TIPS:
Firstly, we do recommend that you have your pergola professionally installed, simply because it is a large beast. However, some keen DIYers are choosing to install it themselves. Please do not attempt this unless you are very experienced with this kind of structure.
Wall and ground bolts are provided but these MAY NOT be suitable for all installations – it will depend on the base material and your house/wall construction. This pergola is suitable for installation on wood, cement & brick walls. We cannot give individual advice, but so please obtain professional guidance and installation.
It’s important to know that the screws we supply for the base plates are only suitable for fixing into wooden deck joists and, for your safety (and everyone else’s), you will need to achieve an embedment of at least 70mm.
There is no wind rating for our Wall Mounted Pergolas and they are NOT recommended for exposed areas. Please use your own judgement or get expert advice. For your safety, we do not recommend that you attempt to make alterations to these Patio Covers, and any adjustments will void your warranty coverage.
If you are installing your pergola in an exposed or wind-prone area, or are installing into a non-wooden surface such as concrete or stone, we again recommend getting professional assistance. You will also need to obtain suitable fixtures (not provided).
NB: For your safety, we do not recommend that you attempt to make alterations to these pergolas, and any adjustments will void your warranty coverage. If you’d like more information about installation, please email support@containerdoor.co.nz to request a copy of the manual and/or technical drawings.
LOOKING FOR PROFESSIONAL INSTALLATION? WE HAVE A COUPLE OF RECOMMENDATIONS:
MO Engineering - Matt is a contract engineer and professional louvre installer in the Auckland/Waikato Region. See his Facebook page here for more info.
Kitset Assembly Services - They’re really friendly, know what they’re doing and have branches around NZ. Check out their website: www.kas.co.nz
And before you ask, no, we don’t get any kind of money for saying this!
It is recommended that you do not book an installer until you have received all boxes of your pergolas.
*In some cases, a building or resource consent may be needed. For pergolas over 20 square metres we recommend checking with your local council authorities for further information and guidance.
WARRANTY
Warranty does not cover fading or damage incurred due to extreme weather exposure (including heavy rain, winds, exposure to high heat from bbqs and heaters). It also does not cover damage caused by negligence, accident or misuse. Please follow the instruction manual for installation as damage caused by not following the instructions will void your warranty.
Warranty covers domestic use only and does not apply to commercial use. However, we will do our best to help with any issues or replacements parts.
